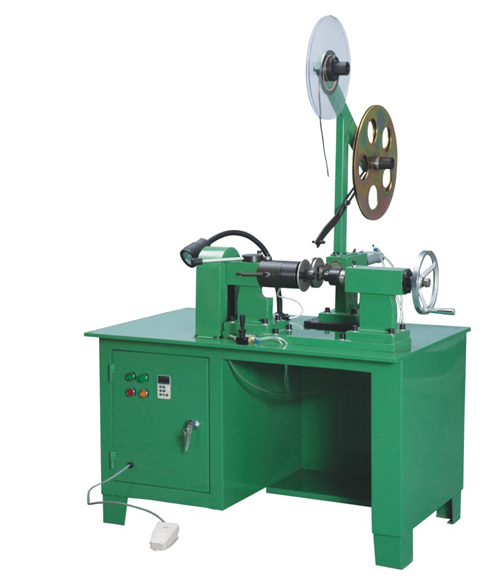

Winding Machine For Small Size SWG

Suitable to produce 1/2"-6" SWG with or without inner ring (Gasket diameter 15MM-200MM)


Send Inquiry


Description
Specification as following:
STYLE KXT E200A winding machine for small size SWG
Producing ability 1/2"—6" spiral wound gasket with or without inner ring
SWG thickness 4.5mm (also suitable for 2.5mm, 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)
Maximum gasket OD 200mm
Minimum gasket ID 15mm
Gasket OD tolerance ±0.5mm
Spindle motor rotation speed 0--240rpm
Total power 2.2kw
Spindle motor power 0.75kw
Power supply 380V/220V as request, 3 phases
Air compressor 0.6—0.8 MPA
Frequency Converter 2.2G
Machine measurement 1200*850*1650mm
Machine net weight 280kg
