Standard Spiral Wound Gasket
We are reliable manufacturer and supplier of Standard Spiral Wound Gasket,High Quality Low Price Standard Spiral Wound Gasket,For All Sealing Needs.
-
Graphite gasket reinforced with metal mesh
We are reliable manufacturer and supplier of Graphite gasket reinforced with metal mesh,High Quality Low Price Graphite gasket reinforced with metal mesh,For All Sealing Needs.
-
Oval Ring Joint Gasket
We are reliable manufacturer and supplier of Oval Ring Joint Gasket,High Quality Low Price Oval Ring Joint Gasket,For All Sealing Needs.
-
Octagonal Ring Joint Gasket
We are reliable manufacturer and supplier of Octagonal Ring Joint Gasket,High Quality Low Price Octagonal Ring Joint Gasket,For All Sealing Needs.
-
RX Ring Joint Gasket
We are reliable manufacturer and supplier of RX Ring Joint Gasket,High Quality Low Price RX Ring Joint Gasket,For All Sealing Needs.

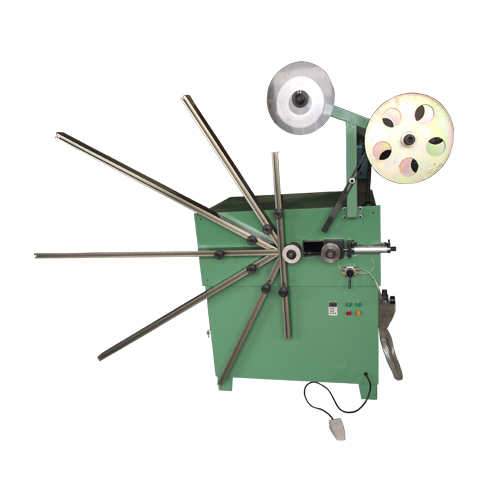

Manual Vertical Big Size Winding Machine For SWG
Very easy to use. Suitable for SWG with or without inner ring, diameter from 200mm to 1600mm;
| Specification as following: | |
| STYLE | KXT E1200 Vertical big size winding machine |
| Producing ability | spiral wound gasket with or without inner ring |
| SWG thickness | 4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding) |
| Maximum gasket OD | 1600mm |
| Minimum gasket ID | 200mm |
| Gasket OD tolerance | ±0.8mm |
| Total power | 2.2kw |
| Spindle motor power | 1.5kw |
| Frequency Converter | 2.2G |
| Power supply voltage | 380V/220V for option, 3 phases |
| linear speed | 0-800mm/s |
| Air compressor | 0.6-0.8 MPA |
| Machine measurement | 2200*850*1800mm |
| Machine net weight | 220 kg |
